Dodge Ram 2500

Core Base Specs (All Sizes Same)

• PCD: 8×165.1mm (8×6.5")

• Center Bore: 121.3mm

• Stud Thread: M14×1.5

• Rule: All these widths must use forged wheels only; cast not safe for HD Ram 2500

1. 22×12

• Best Offset: ET-44 ~ ET-51

• Backspacing: 5.0″–5.3″

• Min Lift: 4″ Suspension Lift

• Tire Match: 35×12.5R22 / 37×13.5R22

• Notes: Mild aggressive poke, easy fit, less trimming needed

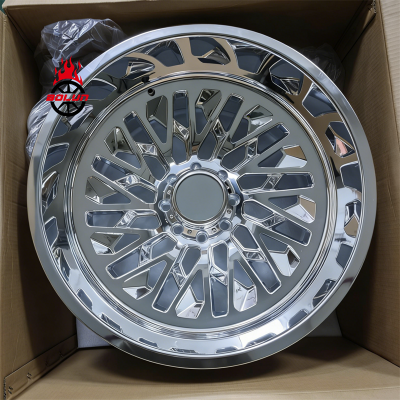

2. 24×14

• Best Offset: ET-70 ~ ET-76

• Backspacing: 4.5″–4.8″

• Min Lift: 6″ Suspension Lift

• Tire Match: 37×15.5R24 / 40×15.5R24

• Notes: Must add 4.5″+ wide fender flares

3. 26×14

• Best Offset: ET-76 ~ ET-84

• Backspacing: 4.3″–4.6″

• Min Lift: 8″ Suspension Lift

• Tire Match: 40×15.5R26

• Notes: Full inner fender removal + bumper trim required

4. 26×16 (Ultra Wide)

• Best Offset: ET-88 ~ ET-96

• Backspacing: 3.8″–4.2″

• Min Lift: 10″+ Full Lift Kit + Widebody

• Tire Match: 40×15.5R26 / 42×16R26

• Notes: Show truck spec, custom alignment, steering upgrade mandatory

General Required Mods (All Big Wheels)

• Adjustable upper control arms

• Dual steering stabilizer

• 4.5″–5″ wide fender flares (24×14 and up)

• Inner liner removal + front bumper trimming

• Professional 4-wheel alignment after install

Installation Specs

• Hub ring: 121.3mm

• Lug nuts: M14×1.5 extended conical seat

• Torque: 170–180 N·m

• High-speed dynamic balancing required

I can make a clean short English product description version for each wheel size ready for your website/catalog.

Dodge Ram 2500 Complete Tuning Guide (Professional English Version)

1. Factory Core Specs

• PCD: 8×165.1mm (8×6.5”)

• Center Bore: 121.3mm

• Wheel Studs: M14×1.5

• Factory Offset: ET25 ~ ET35

• Engine Options:

• 6.7L Cummins Turbo Diesel: 370hp / 850lb-ft

• 6.4L HEMI V8 Gasoline: 410hp / 429lb-ft

2. Powertrain Tuning

ECU & Performance Tuner

• Stage 1 Tune: +60–100hp, +150–250lb-ft, improved throttle response

• Stage 2 Tune: +120–180hp, +300lb-ft+, better towing power

• Recommended: Edge, Bully Dog, Smarty Tuner

Intake / Exhaust

• Cold Air Intake: High-flow intake reduces heat soak and adds 8–12hp

• Exhaust System: 4-inch / 5-inch straight pipe exhaust with muffler delete for deep diesel tone

• Turbo Back exhaust improves airflow and power delivery

Fuel & Turbo Upgrade

• Upgraded fuel injectors + high-pressure fuel pump

• Bigger compound turbo kit for high horsepower builds

• Proper transmission tuning required for heavy torque gains

3. Suspension & Lift Kits

• 2.5–3.5” Leveling Kit: Level front/rear, fits 35” tires, daily driving friendly

• 4–6” Full Suspension Lift: Fox / Rancho / BDS coilovers, fits 37” tires

• 8–10” Extreme Lift: For 24×14 / 26×14 / 26×16 big wheel setups

• Upgrades: Adjustable upper control arms, dual steering stabilizers, heavy-duty leaf springs

4. Wheel & Tire Fitment

Popular Wheel Sizes & Offset

• 22×12: ET-44 ~ ET-51 | Fit 4”+ lift | Tire: 35×12.5R22 / 37×13.5R22

• 24×14: ET-70 ~ ET-76 | Fit 6”+ lift | Tire: 37×15.5R24

• 26×14: ET-76 ~ ET-84 | Fit 8”+ lift | Tire: 40×15.5R26

• 26×16: ET-88 ~ ET-96 | Fit 10”+ lift + widebody | Tire: 40×16R26

5. Exterior Styling

• Custom mesh grille with RAM letter logo

• Functional heat-extraction hood

• Widebody fender flares

• Steel front/rear bumpers + side steps

• 40” LED light bar + smoked headlights

• Fender vents and custom badging

6. Classic Build Combinations

• Daily & Tow Build: 2.5” level kit + 22×12 wheels + 35” A/T tires + cold air intake + stage 1 tune

• Off-Road Aggressive Build: 6” lift + 24×14 forged wheels + 37” M/T tires + 5” exhaust

• Show Truck Build: 10” lift + 26×16 deep dish wheels + 40” tires + widebody fenders

7. Installation & Key Tips

• Hub bore: 121.3mm, use hub-centric rings for aftermarket wheels

• Lug nut spec: M14×1.5

• Wheel torque: 170–180 N·m

• Big wheels require full inner fender trimming and professional alignment
