GMC Sierra 1500 / 2500 / 3500 Wheels Tuning

Unified Basic Spec Reference

GMC Sierra 1500 (Half-Ton)

• PCD: 6×139.7mm (6×5.5")

• Center Bore: 78.1mm

• Lug Stud: M14×1.5

• Factory Offset: ET24 ~ ET31

GMC Sierra 2500 / 3500 (Heavy Duty HD)

• PCD: 8×180mm

• Center Bore: 124.1mm

• Lug Stud: M14×1.5

• Factory Offset: ET35 ~ ET45

1. GMC Sierra 1500 Wheel Fitment

Common Sizes + Offset

• 18×9：ET+15 ~ +25 | Stock / Leveled

• 20×9 / 20×10：ET0 ~ +20 | 2" Level

• 22×10：ET-12 ~ 0 | 2.5–4" Lift

• 24×12：ET-44 | 4–6" Lift

Matching Tires

• Stock/Level：275/65R18、285/55R20、33×12.5R20

• Lifted：35×12.5R22、35×13.5R24

2. GMC Sierra 2500 / 3500 HD Wheel Fitment

Common Sizes + Offset

• 20×10：ET-24 ~ ET-18 | 4" Lift

• 22×12：ET-44 ~ ET-51 | 6" Lift

• 24×14：ET-70 ~ ET-76 | 6–8" Lift

• 26×14 / 26×16：ET-76 ~ ET-95 | 8–10" Lift + Widebody

Matching Tires

• 20×10：35×12.5R20

• 22×12：37×13.5R22

• 24×14：37×15.5R24、40×15.5R24

• 26×14/26×16：40×15.5R26、42×16R26

3. General Tuning Rules

1. Sierra 1500 = 6-lug 6×139.7；2500/3500 HD = 8-lug 8×180，cannot interchange

2. 24×14 and above on HD must use forged wheels only for load capacity

3. Big negative offset needs lift kit + fender flares to avoid rubbing

4. Use hub-centric rings for aftermarket wheels to eliminate vibration

5. Lug nut spec: M14×1.5；Torque: 150N·m (1500) / 175N·m (2500/3500)

4. Quick Build Style

• Sierra 1500：Street flush / Luxury cruise / Mid-size off-road

• Sierra 2500/3500 HD：Heavy-duty tow / Aggressive lifted / Show truck big wheel style

GMC Sierra 1500 / 2500 / 3500 Full Tuning Guide

1. Basic Core Specs

GMC Sierra 1500 (Half-Ton)

• PCD: 6×139.7mm

• Center Bore: 78.1mm

• Wheel Stud: M14×1.5

• Engines: 2.7L Turbo / 5.3L V8 / 6.2L V8 / 3.0L Duramax Diesel

GMC Sierra 2500 / 3500 HD (Heavy Duty)

• PCD: 8×180mm

• Center Bore: 124.1mm

• Wheel Stud: M14×1.5

• Engine: 6.6L Duramax Turbo Diesel / 6.6L V8 Gas

2. Powertrain Tuning

Sierra 1500

• ECU Tune / Performance Chip: Improve throttle response, gain +40–80 HP, better fuel economy

• Intake & Exhaust: Cold air intake + 3-inch cat-back exhaust for deeper sound and power boost

• 2.7L Turbo: Stage 2 upgrade for 350+ HP

• 6.2L V8: Supercharger upgrade to 600+ HP

• 3.0L Diesel: Tune + exhaust for higher torque and towing ability

Sierra 2500 / 3500 HD

• 6.6L Duramax Diesel: Stage 1–3 ECU tuning, big torque gain for towing & off-road

• 4–5 inch full exhaust system for deeper diesel tone

• Upgrade intercooler, fuel injectors and high-pressure fuel pump for high-performance builds

• Transmission tune required to handle extra torque

3. Suspension & Lifting Tuning

Sierra 1500

• 2″ Leveling Kit: Daily use, level stance, fits 33″ tires

• 2.5–4″ Suspension Lift: Fox/Icon coilovers, off-road ready, fits 35″ tires

• 6″+ Extreme Lift: For 24×12 large wheel show builds

Sierra 2500 / 3500 HD

• 2.5–3.5″ Leveling Kit: Mild lift for 35″ tires

• 4–6″ Full Lift: Fits 37″ tires, heavy-duty shocks

• 8–10″ Extreme Lift: For 24×14 / 26×14 / 26×16 aggressive setups

• Common upgrades: Adjustable upper control arms, dual steering stabilizer, heavy-duty leaf springs

4. Wheels & Tires Tuning

Sierra 1500 Popular Fitment

• 18×9 / 20×9 / 20×10: ET+10 ~ +25 | Stock / Leveled

• 22×10: ET0 ~ -12 | 2.5–4″ Lift

• 24×12: ET-44 | 4–6″ Lift

• Tire: 33×12.5R20 / 35×12.5R22 / 35×13.5R24

Sierra 2500 / 3500 HD Popular Fitment

• 20×10: ET-18 ~ -24 | 4″ Lift

• 22×12: ET-44 ~ -51 | 6″ Lift

• 24×14: ET-70 ~ -76 | 6–8″ Lift

• 26×14 / 26×16: ET-76 ~ -95 | 8–10″ Lift + Widebody

• Tire: 35/37/40 inch A/T & M/T tires

• Rule: 24×14 and above forged wheels only

5. Exterior Styling

• Custom mesh grille with GMC letter logo

• Functional heat extraction hood

• Carbon fiber hood & body trim

• Wide fender flares for lifted big wheel builds

• Steel front/rear bumpers + side steps

• 40-inch LED light bar, smoked headlights

• Custom badging and body accent trim

6. Classic Build Styles

• Daily Luxury Street: Level kit + 20/22 inch wheels + A/T tires + intake/exhaust + ECU tune

• Off-Road Aggressive: 3–6″ lift + mid-size negative offset wheels + M/T tires + suspension upgrade

• Heavy-Duty Tow Build: HD 2500/3500 level kit + 20×10 wheels + diesel tune + exhaust

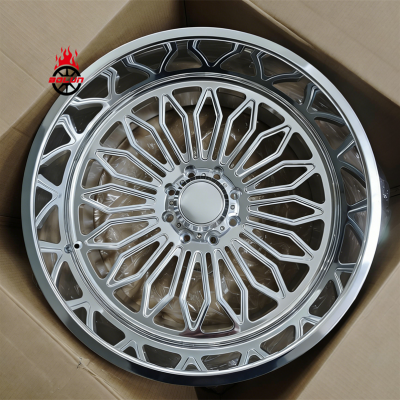

• Show Truck Build: 6–10″ extreme lift + 24×14 / 26×16 deep-dish forged wheels + widebody flares

7. Installation Tips

• Use hub-centric rings for aftermarket wheels to avoid vibration

• Wheel torque: 150 N·m (1500) / 175 N·m (2500/3500)

• Big negative offset must match lift height to prevent fender rubbing

• Lifted trucks require professional 4-wheel alignment

• HD models prioritize load rating when choosing wheels
