Dodge Ram 2500 / 3500 Tuning – Full Benefits & Complete Upgrade Guide

Core Factory Specs

• Bolt Pattern: 8×165.1mm (8×6.5")

• Center Bore: 121.3mm

• Lug Stud: M14×1.5

• Factory Offset: ET30–ET40

• Engines: 6.7L Cummins Diesel / 6.4L HEMI V8 Gas

Main Benefits of Tuning Ram 2500 / 3500

1. More Horsepower & TorqueStage 1–3 tuning boosts power, eliminates throttle lag, stronger acceleration and highway passing.
2. Heavy Towing & Hauling ImprovementMassive low-end torque for trailers, campers, farm equipment; easier climbing hills with heavy loads.
3. Better Fuel EfficiencyOptimized ECU mapping + intake/exhaust improve combustion, save fuel on long drives.
4. Smoother TransmissionFix rough shifting, firm up gear changes, extend transmission life under heavy load.
5. Aggressive Exhaust Sound4"–5" turbo-back exhaust gives deep clean diesel rumble or sporty HEMI V8 tone.
6. Off-Road ReadyLift kits + big wheels improve ground clearance, mud/sand/hill climbing ability.
7. Custom Aggressive AppearanceLevel/lifted stance, large aftermarket rims, fender flares, custom grille & lighting.

1. Engine & Performance Upgrades

6.7L Cummins Diesel

• ECU Tune Stage 1 / 2 / 3: +60~180HP, +150~300lb-ft torque

• High-flow cold air intake + upgraded intercooler (reduce heat soak)

• 4–5 inch turbo-back exhaust system

• Advanced: Upgraded injectors, high-pressure fuel pump, compound turbo kit (500HP+)

6.4L HEMI V8 Gas

• Cold air intake + long tube headers + cat-back exhaust

• Custom ECU tune for sharper throttle and sporty sound

2. Suspension & Lifting

• 2.5–3.5" Leveling Kit: Level front/rear, fits 35" tires, daily & towing friendly

• 4–6" Full Suspension Lift: Fits 37" tires, Fox/BDS/Rancho shocks, off-road upgrade

• 8–10" Extreme Lift: For show truck big wheel builds

• Common upgrades: Adjustable upper control arms, dual steering stabilizer, heavy-duty leaf springs

3. Wheels & Rims Tuning Fitment

• 20×10: ET-18~-24 | 4" Lift | Tire: 35×12.5R20 / 37×13.5R20

• 22×12: ET-44~-51 | 6" Lift | Tire: 37×13.5R22

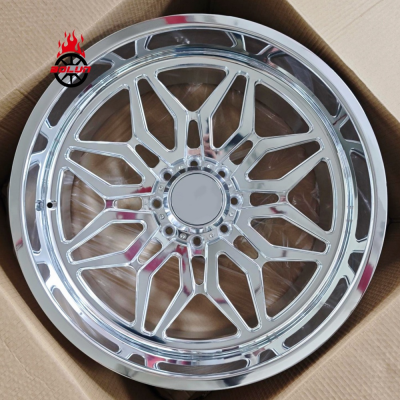

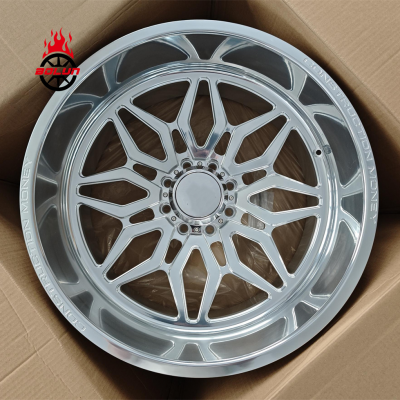

• 24×14: ET-70~-76 | 6–8" Lift | Tire: 37×15.5R24 / 40×15.5R24

• 26×14 / 26×16: ET-76~-96 | 8–10" Lift + Widebody | 40" tires

24×14 and larger must use forged wheels for heavy-duty load safety.

4. Exterior Styling

• Custom RAM letter mesh grille

• Functional heat-extraction hood

• Wide fender flares for lifted big wheels

• Steel front/rear bumpers + side steps

• 40" LED light bar, A-pillar lights, smoked headlights

• Blackout trim & custom badging

5. Installation Key Tips

• Hub centric ring: 121.3mm

• Lug nut: M14×1.5 extended conical seat

• Wheel torque: 170–180 N·m

• Negative offset rims require lift + flares to avoid fender rubbing

• Lifted trucks need professional 4-wheel alignment
