SIZE ET PCD CB
22X8.25 145/167 10x225 170.1
24X8.25 146/168 10x225 170.1
26X8.25 146/168 10x225 170.1
28X8.25 145/167 10x225 170.1
30*8.25 145/167 10x225 170.1

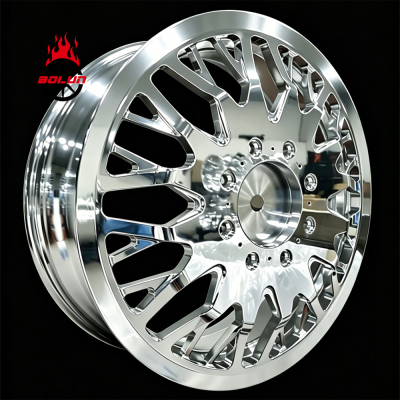

Custom 20 22 24 26 28 30 inch dually wheels from China Bolun factory
Customizable Color: Polished/Black milled/Coating/Brushed
Custom floating Caps logo
Material: Aerospace Aluminum material A6061-T6.
Sizes: Available in various sizes including 20" 22", 24", 26", 28", 30".
Wide Range of Applications: Suitable for trucks, SUVs, and other heavy-duty vehicles
Available Size:
20x8.25 22x8.25 24x8.25 26x8.25 28x8.25 30x8.25 22.5X8.25 24.5X8.25
1. Material: Genuine Forged 6061-T6 Aerospace Aluminum
2. Size Range: | 20", 22", 24", 26", 28", 30" |
3. Width: | 8.25J, 10J, 12J, 14J, 16J (Deep Dish Design) |
4. PCD (Bolt Pattern): | 8X6.5 6X5.5 6X135 8x170, 8x180, 8x165.1, 6x139.7, 5x1278X200,10X225,10X285.75 (Customizable) |
5. Offset (ET): | Extreme Negative Offsets: -44mm, -76mm, -101mm(Customizable)|
6. Finish Options: Mirror Polished, Gloss Black, Brushed Fuel,Black milled
7. Suitable Trucks: Ford F150 F250 F350 F450
Dodge ram 1500 2500 3500
GMC Sierra 1500 2500 3500
Chevrolet Silverado 1500 2500 3500
Toyota tacoma......
8. Dually Trucks: Ford F350,F450,F550
Chevy Silverado 3500
Gmc Sierra 3500
Dodge Ram 3500 4500 5500
Meta Description: Upgrade your Ford F450 DRW with premium polished custom forged dually wheels from bolunwheels.com. Explore fitment specs, material benefits, sizes, tire combinations and styling for stock & lifted F450 Super Duty. Core SEO Keywords: Ford F450 polished dually wheels, custom forged dually wheels for F450, F450 DRW polished forged rims, 6061-T6 forged dually wheels, 8x200 dually wheels, F450 dually PCD ET CB, lifted Ford F450 dually wheels, heavy duty polished dually rims, bolunwheels F450 dually wheels
The Ford F-450 Super Duty Dual Rear Wheel (DRW) stands as an icon among heavy-duty pickup trucks. Built to deliver exceptional towing power, massive payload capacity and rugged reliability, this workhorse is favored by commercial fleets, RV owners, trailer haulers, off-road enthusiasts and truck show builders across the globe. Powered by the robust 6.7L Power Stroke Turbo Diesel engine, the Ford F-450 generates outstanding torque and horsepower, capable of pulling fifth-wheel trailers, gooseneck rigs and heavy equipment with ease.While the factory wheels that come standard on the F-450 DRW serve basic functional needs, they fall short in three key areas: overall strength, lightweight performance and personalized aesthetics. If you want to maximize your truck’s capability while elevating its exterior look, polished custom forged dually wheels are the ultimate modification.At bolunwheels.com, we specialize in engineering premium polished custom forged dually wheels tailor-made for all generations of Ford F-450 DRW. Crafted from high-grade 6061-T6 aluminum alloy and manufactured via professional forging technology, our dually rims combine industrial-grade durability, precise OEM fitment and stunning mirror-polished finishes. Whether you drive a stock-height work truck, a leveled daily driver or a heavily lifted show truck, our polished custom forged dually wheels will transform your Ford F-450 in both performance and style. This comprehensive guide covers everything you need to know about upgrading to our F-450 dedicated dually wheels.
Many F-450 owners hesitate between stock steel wheels, cast aluminum wheels and aftermarket forged wheels. Once you understand the unique advantages of polished custom forged dually wheels, you will realize why they are the top choice for serious Super Duty enthusiasts.
Ford F-450 is designed for extreme loads and constant heavy-duty use. Our custom forged dually wheels are produced with advanced forging processes using 6061-T6 aerospace aluminum. Compared to cast wheels and factory steel wheels, forged wheels feature a much denser and more uniform metal grain structure. This design effectively resists bending, cracking, warping and deformation under heavy payload, strong torque and rough road conditions.Each set of our F-450 dually wheels undergoes strict load testing, impact testing and dynamic balance testing. With a load rating up to 6,000 pounds per wheel, our forged dually rims far exceed the load standard of original factory wheels. Even when your F-450 is towing maximum-weight trailers or traveling on bumpy off-road terrain, these wheels maintain stable performance and long service life.
Unsprung weight plays a vital role in a truck’s handling, braking and fuel economy. Factory steel dually wheels are extremely heavy, which increases burden on suspension systems, slows down steering response and raises fuel consumption. Our 6061-T6 forged dually wheels are 20% to 30% lighter than steel wheels and 15% lighter than ordinary cast aluminum wheels.The reduced unsprung weight brings tangible improvements to your Ford F-450: steering becomes more agile and responsive, braking distance is shortened, the entire vehicle runs more smoothly at high speeds, and daily fuel efficiency is optimized. For long-distance towing and frequent highway driving, this advantage becomes even more obvious.
A major highlight of our dually wheels is the handcrafted mirror polished finish. Different from painted or coated wheels, the pure aluminum polished surface presents a bright, glossy metallic luster that catches eyes on every road, job site and truck event. The smooth polished surface is not only visually attractive but also practical: it is resistant to oxidation and corrosion, easy to clean and maintain, and will not fade or peel like spray paint or chrome plating.We support full personalized customization based on your preferences. Apart from standard full polished style, you can also choose two-tone designs, laser engraving, custom logo carving and exclusive pattern processing. No matter you prefer a classic luxurious look or an aggressive tough style, we can create one-of-a-kind dually wheels to match your Ford F-450.
Dual rear wheel (DRW) systems have extremely strict requirements for matching. A complete dually setup includes two front wheels, two inner rear wheels and two outer rear wheels. The size, offset and backspacing of inner and outer rear wheels must be precisely matched to avoid tire friction, abnormal wear and axle pressure.All polished custom forged dually wheels from bolunwheels.com are specially engineered for Ford F-450 DRW. We provide complete 6-wheel integrated kits with unified design style and calibrated technical parameters. Every wheel is machined according to OEM standards, ensuring seamless assembly, no modification required and zero vibration during driving.
Precise fitment is the foundation of safe use for dually wheels. Below are the standard technical parameters for 2005 to 2026 Ford F-450 DRW, which are fully compatible with our polished custom forged dually wheels.
All modern Ford F-450 DRW models from 2005 onwards adopt the heavy-duty bolt pattern: 8x200mm (8 lugs). This 8-lug large-diameter PCD is designed to bear huge load and torque, which is the standard configuration for Ford heavy-duty dually trucks. All our F-450 forged dually wheels are strictly produced following the 8x200mm bolt pattern, ensuring perfect matching with factory lug studs.
Factory hub bore size of Ford F-450 DRW: 142.2mm. Our polished forged dually wheels adopt hub-centric design with 142.2mm center bore. Hub-centric wheels can be closely attached to the vehicle hub for accurate positioning, effectively eliminating high-speed vibration caused by poor centering. There is no need to install additional hub rings, realizing direct bolt-on installation.
Offset (ET) directly determines the wheel’s position inside the wheel well, which is critical for preventing tire rubbing on fenders, suspension and adjacent tires. We configure exclusive ET values for front wheels, inner rear wheels and outer rear wheels of F-450 respectively:
Front Wheels: ET +35mm ~ +40mm, suitable for stock and leveled suspension, no fender rubbing
Inner Rear Wheels: ET +40mm ~ +45mm, reasonable clearance reserved between dual rear tires
Outer Rear Wheels: ET +25mm ~ +30mm, creates a powerful stance without scratching fenders
The standard backspacing ranges from 6.5 inches to 7.0 inches, fully compatible with original suspension, lift kits and aftermarket suspension parts for F-450.
Lug nut thread specification: M14 x 1.5
Recommended tightening torque: 150 – 160 ft-lbs This standard follows Ford’s official requirement, which guarantees firm installation and driving safety.
We offer multiple mainstream sizes of polished custom forged dually wheels for Ford F-450, covering stock trucks, leveled trucks and various lifted builds. Each size is paired with recommended tire specifications for your reference.
This is the most classic and practical size for stock-height Ford F-450 DRW. It maintains the original driving feel and payload performance, ideal for daily work, cargo transportation and regular highway driving.
Matched tires: LT245/75R17, LT275/70R18, LT275/65R20
Application scenario: Commercial work trucks, fleet vehicles, daily commuting
The best-selling custom size for F-450 dually trucks. It balances style, comfort and practicality perfectly, favored by most truck owners. The moderately enlarged wheel diameter enhances visual layering without affecting normal towing and hauling capabilities.
Matched tires: LT285/60R22, 33x12.50R22 AT/MT tires
Application scenario: Leveled trucks, light off-roading, weekend towing and leisure travel
A mainstream choice for medium-lifted Ford F-450 (6 to 10 inches lift). The large polished wheels create an aggressive and domineering appearance, standing out easily on truck shows and outdoor gatherings.
Matched tires: 35x12.50R24, 37x13.50R24 all-terrain or mud-terrain tires
Application scenario: Lifted trucks, off-road builds, truck show vehicles
Designed for extreme lifted F-450 (12 to 18 inches lift). This oversized polished dually wheel delivers the most striking visual impact, becoming the focal point of the whole vehicle.
Matched tires: 40x15.50R26, 44x16.50R30 mud-terrain tires
Application scenario: Extreme lift builds, professional show trucks, customized display vehicles
Ford F-450 DRW belongs to heavy-duty trucks. Please choose LT (Light Truck) tires with Load Range F or above. High load-range tires have stronger pressure resistance and wear resistance, which can adapt to the heavy load characteristics of dually trucks and ensure driving safety. Passenger car tires are not recommended for F-450 DRW.
To help you fully understand the quality advantages of our products, we briefly introduce the production flow of our F-450 polished forged dually wheels:
Raw Material Selection: Adopt genuine 6061-T6 aluminum alloy billet with stable chemical composition and mechanical properties.
High-Pressure Forging: Use 12000-ton professional forging equipment to press the billet into wheel blanks, forming dense internal structure.
Precision CNC Machining: Complete turning, drilling and shaping according to F-450 fitment data to ensure accurate PCD, CB and ET.
Surface Polishing: Conduct multi-step manual and mechanical polishing to achieve mirror-bright aluminum surface.
Quality Inspection: Carry out load test, impact test, air tightness test and dynamic balance test one by one.
Finishing & Packaging: Remove tiny burrs, do anti-oxidation protection treatment, and use professional shockproof packaging for transportation.
Every production link is strictly controlled, so that each polished custom forged dually wheel can meet the high standards of heavy-duty truck use.
Before installation, thoroughly clean the hub surface of the Ford F-450 to remove rust, dust and old brake dust, to ensure the wheel fits closely with the hub.
Install the wheel and tighten lug nuts in diagonal order, following the torque standard of 150-160 ft-lbs.
After driving 50 miles for the first time, re-torque all lug nuts. Check the tightness regularly every 5,000 miles.
Our wheels are fully compatible with factory TPMS sensors, no adapters are needed, and the tire pressure monitoring system works normally.
Clean the wheels regularly with neutral detergent and soft water. Avoid strong acid, strong alkali and corrosive cleaners, which will damage the polished surface.
After driving on muddy roads or salted roads in winter, rinse the wheels in time to prevent corrosion.
Use professional aluminum polish for maintenance every 2 to 3 months to keep the mirror luster and prevent surface oxidation.
After off-road driving, carefully check the wheel surface for scratches, dents or cracks, and deal with minor damage timely.
Good maintenance can keep your polished forged dually wheels in perfect condition for many years.
As a professional manufacturer focusing on heavy-duty dually wheels for American pickup trucks, we have rich experience in Ford F-450 DRW wheel customization. Here are the reasons why countless F-450 owners choose us:
Professional Customization Service: Support exclusive customization on size, offset, finish, logo and pattern to create personalized dually wheels.
Reliable Quality Assurance: All products pass multiple professional tests, with lifetime structural warranty and 3-year warranty for polished finish.
Global Shipping Service: Provide safe and insured worldwide shipping, with thick protective packaging to prevent polished surface from scratching during transit.
Professional Technical Support: Our team is familiar with all generations of Ford F-450 parameters, providing one-to-one fitment advice and modification suggestions.
Complete Dually Wheel Kits: Supply matched front and rear wheel sets, saving your time on combination and matching.
Upgrading your Ford F-450 Super Duty DRW with polished custom forged dually wheels from bolunwheels.com is a wise investment combining performance, safety and aesthetics. Whether you use your truck for commercial work, heavy towing, off-road exploration or truck show display, our 6061-T6 forged dually wheels can fully release the potential of your F-450. The excellent strength and lightweight design improve driving performance, while the stunning mirror polished appearance makes your truck stand out from the crowd.If you are looking for high-quality, perfectly fitted and stylish dually wheels for your Ford F-450, visit bolunwheels.com right now. Browse our full range of polished custom forged dually wheel series, select the most suitable size and style, and start your F-450 modification journey.
