Ford F-250 Full Tuning Guide (English Professional Version)

1. Core Factory Specs

• PCD: 8×170mm

• Center Bore: 124.9mm

• Wheel Stud: M14×1.5

• Factory Offset: ET44 ~ ET50

• Engine Options:

• 6.7L Power Stroke V8 Diesel

• 7.3L Godzilla V8 Gasoline

2. Powertrain Tuning

6.7L Power Stroke Diesel (Main Tuning Platform)

• ECU/TCU Tune Stage 1–3

  Gain +50–180HP / +100–300lb-ft, improve throttle response, shift quality and towing performance.

• Intake & Intercooler

  High-flow cold air intake + upgraded large intercooler, reduce heat soak and keep stable power output.

• Exhaust System

  4"–5" turbo-back straight pipe exhaust, deeper diesel sound, better exhaust flow.

• Advanced Upgrade

  Upgraded fuel injectors, high-pressure fuel pump, compound turbo kit, break 500HP / 1200lb-ft easily.

7.3L Godzilla V8 Gas

• Cold air intake + long tube headers + cat-back exhaust

• Custom ECU tune for better acceleration and throttle response

3. Suspension & Lift Kit Tuning

• 2.5"–3.5" Leveling Kit

  Level front and rear, fit 35" tires, daily driving & towing friendly.

• 4"–6" Full Suspension Lift

  BDS / Icon / Fox coilover system, install 37" tires, greatly improve off-road capability.

• 8"–10" Extreme Lift

  For 24×14 / 26×14 / 26×16 big wheel show truck builds.

• Common Upgrades:

  Adjustable upper control arms, dual steering stabilizer, heavy-duty leaf springs, front/rear bump stops.

4. Wheels & Tires Tuning (Popular Sizes)

• 20×10: ET-12 ~ ET-24 | 4"+ Lift | Tire: 35×12.5R20 / 37×13.5R20

• 22×12: ET-44 ~ ET-51 | 6"+ Lift | Tire: 37×13.5R22

• 24×14: ET-70 ~ ET-76 | 6–8" Lift | Tire: 37×15.5R24 / 40×15.5R24

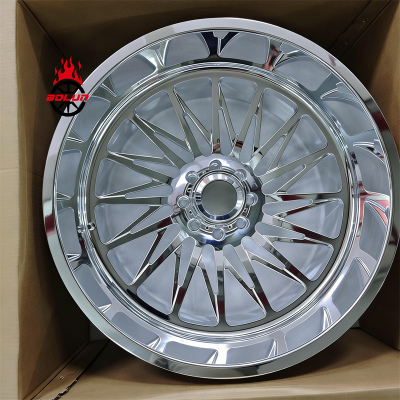

• 26×14 / 26×16: ET-76 ~ ET-95 | 8–10" Lift + Widebody | Tire: 40×15.5R26

5. Exterior Styling

• Custom FORD letter mesh grille

• Heat extraction functional hood

• Wide fender flares for big wheel setup

• Steel front & rear bumper + side steps / rock sliders

• 40" LED light bar, A-pillar ditch lights, smoked headlights

• Custom body trim and blackout package

6. Classic Build Styles

• Daily & Towing Build: 2.5" level kit + 20×10 wheels + 35" AT tires + stage 1 diesel tune

• Off-Road Aggressive Build: 6" lift + Fox suspension + 22×12 wheels + 37" MT tires + 4" exhaust

• Show Truck Luxury Build: 8–10" extreme lift + 26×14 deep dish forged wheels + widebody fenders

7. Installation Key Points

• Hub centric ring: 124.9mm

• Lug nut: M14×1.5 extended conical seat

• Wheel torque: 170–185 N·m

• Big negative offset must match lift height to avoid fender rubbing

• Lifted trucks need professional four-wheel alignment
