SIZE ET PCD CB
20*10 -25 8*170 124.9
22*16 -101 8*170 124.9
24*10 -24 8*170 124.9
24*14 -76 8*170 124.9
26*14 -76 8*170 124.9
26*16 -101 8*170 124.9
28*14 -76 8*170 124.9
28x16 -101 8*170 124.9
| SIZE | ET | PCD | CB |
| 20*10 | -25 | 8*170 | 124.9 |
| 22*16 | -101 | 8*170 | 124.9 |
| 24*10 | -24 | 8*170 | 124.9 |
| 24*14 | -76 | 8*170 | 124.9 |
| 26*14 | -76 | 8*170 | 124.9 |
| 26*16 | -101 | 8*170 | 124.9 |
| 28*14 | -76 | 8*170 | 124.9 |
| 28x16 | -101 | 8*170 | 124.9 |
PCD: 8×170mm (8×6.7")
Center Bore: 124.9mm (use 125mm hub-centric rings)
Studs: M14×1.5
Load Rating: ≥1,680kg/rim (forged mandatory for F-250)
| Setup | Offset Range | Backspacing | Stance |
|---|---|---|---|
| 6"–8" Lift | ET-76 ~ ET-73 | 4.5–4.7" | Extreme poke (signature look) |
| 10"+ Lift | ET-80 ~ ET-76 | 4.4–4.5" | Maximum wide/off-road |
Standard Fit: 26×14" ET-76 (deep-dish, industry standard for F-250)
| Lift Height | Tire Size | Type | Notes |
|---|---|---|---|
| 6" Lift | 37×15.5R26 | A/T / M/T | Requires 4.5"+ fender flares |
| 8"+ Lift | 40×15.5R26 | M/T | Aggressive off-road, full trimming |
Top Combo: 26×14" ET-76 + 37×15.5R26 M/T (6" lift + 5" flares)
Minimum Lift: 6" suspension lift (no exceptions for 26×14")
Fenders: 4.5"–5" wide body fender flares (mandatory to cover poke)
UCAs: Adjustable upper control arms (fixes camber/caster)
Trimming: Full front/rear fender liner & valance trimming
Steering: Aftermarket steering stabilizer (prevents wobble)
Fuel Forged FF09: 26×14" ET-76, black/milled, forged
American Force Heat SS: 26×14" ET-73, polished, forged
Fuel Runner: 26×14" ET-75, gloss black/milled, forged
Hub Rings: 124.9mm → 125mm (mandatory)
Lug Nuts: M14×1.5, 60° conical seat, extended length
Torque: 175–185 N·m (tighten in star pattern)
TPMS: 26" sensors (315MHz)
Balancing: High-speed dynamic balance (critical for heavy wheels)
Run 6"+ lift + 4.5"+ flares
Choose forged wheels (cast will crack under load)
Reinforce front suspension (F-250 is heavy)
❌ Don’t:
Attempt 26×14" on stock/4" lift (severe rubbing)
Use non-hub-centric wheels (violent vibration)
Skimp on flares (illegal in most states)
Ford F-250 tuning centers on off-road capability and heavy-duty power.
Its core specs are 8×170mm PCD, 124.9mm center bore, and M14×1.5 wheel studs. Common modification categories cover powertrain, suspension, wheels & tires, and exterior styling. The 6.7L diesel engine boasts the greatest tuning potential, easily pushing output beyond 500 HP / 1200 lb-ft torque.
PCD: 8×170mm (Exclusive for heavy-duty pickup trucks)
Center Bore: 124.9mm
Wheel Stud Size: M14×1.5
Factory Wheel: 17–22 inch, 7.5–9" width, ET44~50 offset
Engine Options:
6.7L Power Stroke V8 Diesel (440hp / 925lb-ft)
7.3L V8 Gasoline (430hp / 475lb-ft)

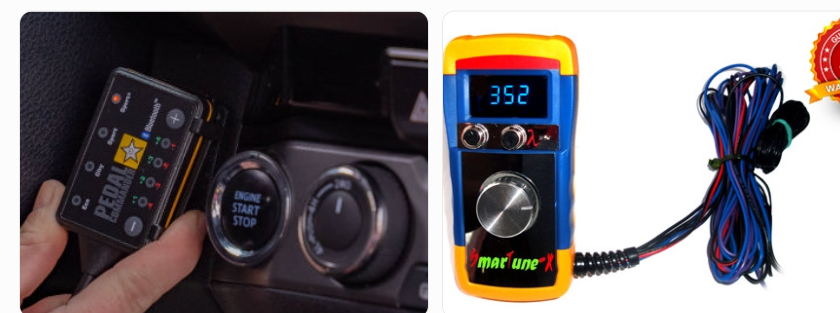

Magnum Smart-Tune-X (Plug-and-play tuner, up to 17% HP gain)

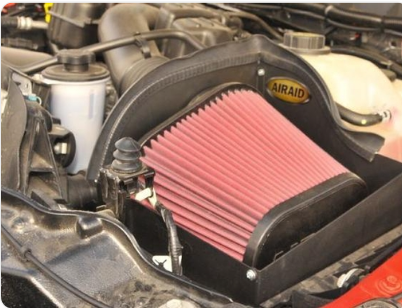

Intake: K&N high-flow air filter
Exhaust: 4-inch straight pipe exhaust with high-performance muffler
Intercooler: Upgraded larger intercooler to lower intake temperature

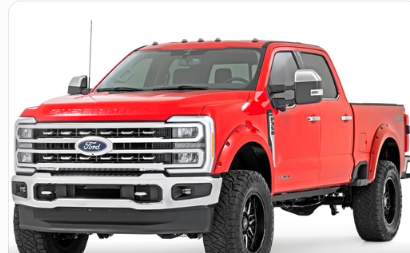

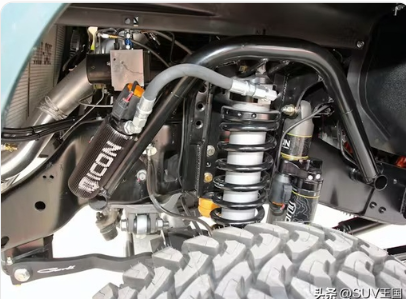

2.5–4 Inch Lift: BDS / Icon coil springs + Fox 2.5 reservoir shocks

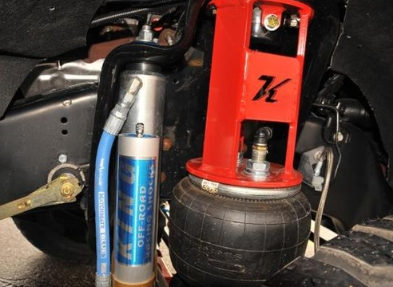

5–6 Inch Lift: Kelderman air suspension (4–6 inch adjustable height with SAMS control system)
Steering: Extended control arms + adjustable sway bar + dual steering stabilizer
Protection: Underbody skid plates, side steps, front & rear steel bumpers

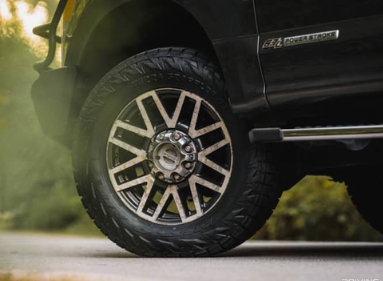

Stock / 2.5" Lift: 35×12.5R20 (Most popular fitment)

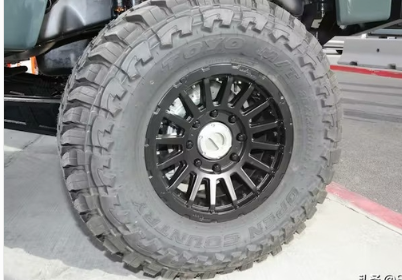

4–6" Lift: 37×13.5R22, 40×15.5R24
Extreme Off-Road: 46-inch Michelin XZL tires (Requires 6"+ lift + wide fender flares)

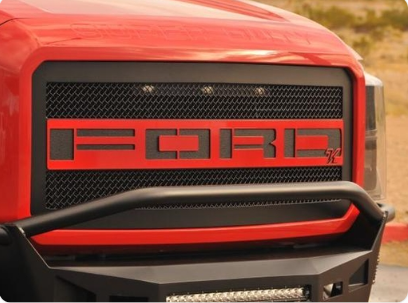

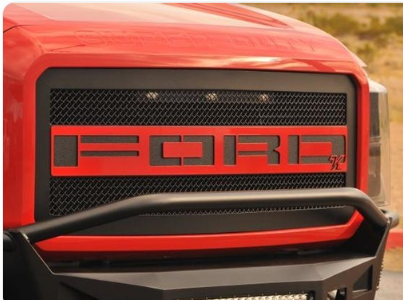

Front Grille: Custom FORD letter grille

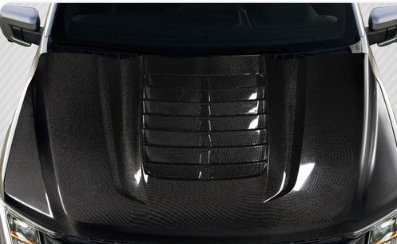

Hood: Carbon fiber hood with heat extraction vents
Fenders: Widebody front & rear fenders (9-inch extension per side, total width +18 inches)
Lighting: 40-inch LED light bar assembly, smoked black headlights
Daily & Off-Road Build: 2.5" lift + 20×10" ET+10 wheels + 35×12.5R20 A/T tires + Stage 1 ECU tune
Hardcore Off-Road Build: 6" air suspension + 22×12" ET-12 forged wheels + 37×13.5R22 M/T tires + Fox shocks
Ultimate Performance Build: 6.7L Diesel + Stage 2 ECU tune + 4" exhaust + upgraded intercooler + fuel system upgrade (550hp+ / 1300lb-ft+)
✅ Must-Check Items: 8×170mm PCD, load index ≥125, steering & suspension clearance, transmission cooling system❌ Avoid: Non-8-lug wheels, ET＜-24 offset without lift kit, tire width over 13.5" without fender flares, diesel build without exhaust upgrade
Higher Load Rating: Reinforced barrel structure supports heavy cargo weight and long-distance towing.
Better Off-Road Durability: Thick rim edges resist impact, cracks, and deformation on rough muddy or rocky terrain.
Aggressive Muscular Stance: Negative offset, wide base, and deep concave designs upgrade the rugged exterior look.
Improved Highway Stability: Optimized hub-centric design reduces vibration during high-speed driving.
Easy Maintenance: Super single wheels eliminate dirt buildup between dual tires for easier cleaning.
Bolt Pattern: 8x170mm (Standard for modern F250 Super Duty)
Hub Bore: 124.9mm
Common Offset: 0mm ~ -44mm for aggressive wide stance
Popular Sizes: 17/18/20/22/24/26/28/30 inch
Compatible Tire Size: 33”, 35” all-terrain or mud-terrain tires
Lift Recommendation: 2~6 inch lift kit for negative offset wide wheels
Forged Wheels: Aerospace-grade 6061-T6 aluminum alloy, lifetime structural warranty, fully customizable offset, size, and logo.
Cast & Flow Form Wheels: High-purity A356.2 aluminum alloy, 100% heat treatment, impact test, fatigue test, and salt spray corrosion test.
Strict Quality Control: Every single wheel passes professional heavy-duty testing before shipment.
Low MOQ: Only 4 pieces for wholesale and retail orders.
Suspension Upgrade: 2~6 inch suspension lift kit to clear wide super single wheels.
Tire Selection: 33-inch or 35-inch mud-terrain tires for off-road grip.
Wheel Offset: -12mm to -44mm negative offset for wider aggressive stance.
Surface Finish: Matte black remains the most classic and versatile finish for F250 trucks.
Accurate OEM Fitment: Strict 8x170 bolt pattern and 124.9mm hub bore data.
High Load Capacity: Reinforced structure for towing and heavy hauling.
Full Customization: Size, offset, color, logo, and surface finish.
Factory Direct Price: No middlemen, affordable wholesale cost.
Trusted Warranty: Lifetime structural warranty for all forged wheels.
Meta Description: Shop premium aftermarket wheels for Ford F250 Super Duty. Bolun Wheels offers super single, concave & heavy-duty rims with 8x170 bolt pattern and high load rating.
The Ford F250 Super Duty is one of the most powerful and versatile heavy-duty pickup trucks on the market. Whether you use your truck for towing, off-road adventures, daily driving, or custom truck shows, upgrading your wheels is one of the best modifications you can make.
At Bolun Wheels Official Website, we specialize in premium forged wheels engineered specifically for Ford F250 Super Duty trucks. Our custom wheel solutions combine strength, durability, and aggressive styling to help your truck stand out both on and off the road.
Factory wheels are designed for basic performance, but aftermarket forged wheels provide major advantages in appearance, strength, and customization.
Custom forged wheels dramatically improve the appearance of your Ford F250. Larger wheels and custom finishes create a more powerful stance and premium truck look.
Popular wheel styles include:
Deep concave wheels
Multi-spoke forged wheels
Gloss black rims
Brushed aluminum finishes
Polished wheels
Custom powder-coated colors
Whether your F250 is stock height, leveled, or fully lifted, custom wheels instantly upgrade its appearance.
Heavy-duty trucks require wheels that can handle towing, hauling, and off-road conditions. Forged aluminum wheels are significantly stronger than standard cast wheels.
Benefits of forged F250 wheels include:
Higher load capacity
Better towing stability
Improved durability
Reduced wheel weight
Better impact resistance
Longer service life
At Bolun Wheels, every forged wheel is designed to meet the demands of heavy-duty truck owners.
Choosing the right wheel size depends on your truck setup and driving style.
20-inch wheels are one of the most popular choices for daily driving and towing.
Advantages:
Excellent ride comfort
Strong towing performance
Factory-style drivability
Great tire availability
This size is perfect for work trucks and daily-driven Super Duty builds.
22-inch forged wheels provide the ideal balance between luxury styling and heavy-duty performance.
Benefits include:
Aggressive road presence
Perfect for leveled trucks
Premium street truck appearance
Excellent fitment for larger tires
22-inch wheels are extremely popular on modern F250 Platinum and Limited builds.
24-inch custom forged wheels are ideal for truck owners looking for maximum visual impact.
Features include:
Show-truck styling
Deep lip wheel designs
Perfect for lifted trucks
Aggressive custom stance
These wheels are commonly paired with suspension lift kits and oversized tires.
Lifted Ford F250 trucks continue to dominate the custom truck industry. Combining forged wheels with aggressive suspension setups creates a bold and powerful appearance.
Popular lifted F250 setups include:
| Wheel Size | Recommended Build |
|---|---|
| 20-inch | Off-road & towing |
| 22-inch | Leveled street trucks |
| 24-inch | Lifted show trucks |
Custom offsets help achieve flush fitment and a wider truck stance.
Forged wheels are manufactured using advanced high-pressure forging technology.
Advantages include:
Lightweight performance
Higher structural strength
Better durability
Improved handling
Premium finish quality
Forged wheels are the preferred option for serious truck enthusiasts and towing applications.
Cast wheels are more affordable but typically heavier and less durable than forged wheels.
For premium truck builds, forged wheels provide better long-term performance and reliability.
At Bolun Wheels Official Website, we offer a wide variety of custom wheel finishes to match your Ford F250 build.
Popular finishes include:
Gloss Black
Matte Black
Brushed Aluminum
Chrome
Polished Finish
Bronze
Custom Powder Coating
Our custom finish options help create a truly unique truck appearance.
All wheels are manufactured using high-quality forged aluminum for maximum strength and lightweight performance.
We provide:
Custom wheel offsets
Multiple wheel sizes
Lifted truck compatibility
Precision CNC machining
Professional fitment support
Our forged Ford F250 wheels are engineered for:
Heavy towing
Off-road driving
Daily use
Lifted truck applications
Long-term durability
Bolun Wheels supplies premium forged truck wheels to customers and dealers worldwide.
Custom forged wheels are one of the best upgrades for any Ford F250 Super Duty. The right wheel setup improves:
Vehicle appearance
Towing stability
Handling performance
Road presence
Truck value
Driving confidence
Whether you want a clean daily driver, a heavy-duty towing setup, or a fully customized lifted truck, Bolun Wheels offers premium forged wheel solutions designed to fit your style.
Looking for the perfect forged wheels for your Ford F250 Super Duty?
Visit Bolun Wheels Official Website today to explore our latest custom wheel designs, premium finishes, and professional truck wheel solutions.
Build your Ford F250 with forged wheels engineered for strength, performance, and aggressive truck styling.
